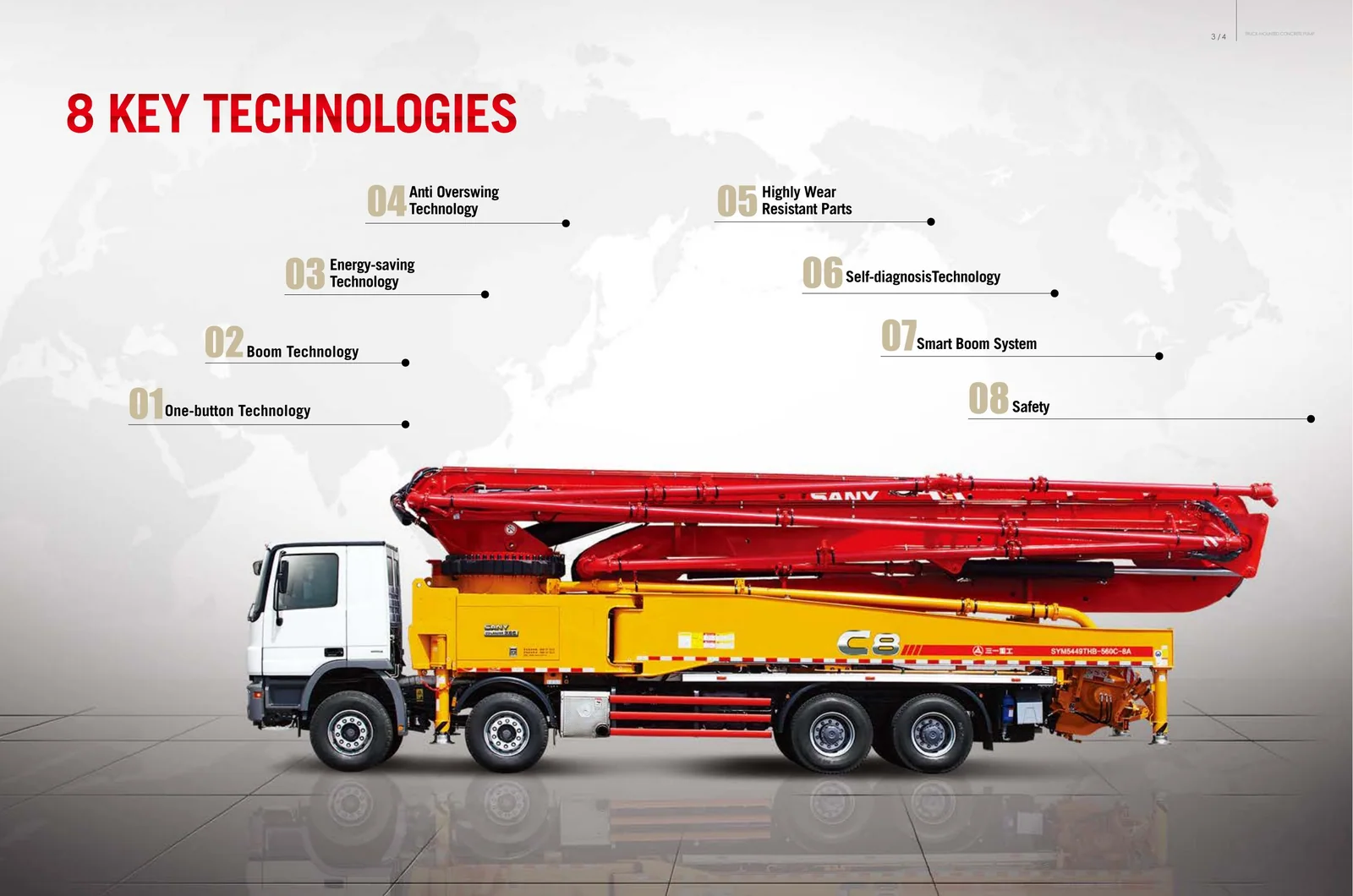

SANY SYG5283THB 380C-8 truck-mounted concrete pump specification view

SANY · Concrete Pump Trucks

SANY SYG5283THB 380C-8 Concrete Pump Truck

A 38 m SYG5283THB 380C-8 truck-mounted concrete pump documented in SANY’s official C8 series brochure.

Brand
Sany
Model
SYG5283THB 380C-8
Product Type
Concrete Pump Trucks
Engine
MC11.39-30
Power
287 kW at 1,900 rpm
Emission Standard
China Stage III

Specifications and configurations may vary by market and application. Contact us for the confirmed configuration.

Key specifications

Published product details

Only model data supported by the cited manufacturer source is shown. Fields that could not be confirmed are left out.

Manufacturer reference source
BrandSany
ModelSYG5283THB 380C-8
Product TypeConcrete Pump Trucks
EngineMC11.39-30
Power287 kW at 1,900 rpm
Emission StandardChina Stage III
Operating / Gross Weight27,800 kg empty weight
Vertical / Horizontal Reach38 m / 34 m
Reach Depth21.5 m
Low / High-pressure Output170 / 120 m³/h
Low / High-pressure Rating8.3 / 12 MPa
Delivery Cylinder260 mm diameter × 1,900 mm stroke
Front / Rear Outrigger Spread6,200 / 7,130 mm
Fuel Tank400 L
Overall Size11,510 × 2,500 × 4,000 mm

Product features

Procurement-focused checks

Features to review

  • Boom reach and articulation are checked against the actual pour location and obstacles
  • Outrigger spread and working envelope determine safe site access and setup
  • Pumping output, pressure and delivery-line diameter are matched to the concrete mix

Available configurations

  • Confirm required reach, pour rate, concrete specification and placement height
  • Review chassis, engine, emissions and steering position for destination registration
  • Select delivery pipe, end hose, cleaning tools and jobsite support package

Applications

Where this model fits

  • Building construction
  • Infrastructure
  • Concrete placement

Why choose this product

Assess the complete offer

The model is a starting point. Compare the quoted powertrain, axle or undercarriage, body or attachment, emission requirement, local parts support and shipment plan as one package.

Export & shipping

Plan around the final dimensions

Shipping format depends on the complete vehicle or machine dimensions, weight, safe dismantling points, destination port and sailing options. The review may include container, flat-rack, breakbulk or RoRo service.

Before dispatch, confirm the commercial specification, packing or protection method, included tools and parts, and the document list required by the transaction. Lead time is quoted against the actual configuration and production availability.

Product FAQ

Questions before ordering

What is the price of the SANY SYG5283THB 380C-8 Concrete Pump Truck?

Price depends on the confirmed engine, transmission, axles, body or upper structure, emission package, quantity and shipping destination. Send the required configuration for a current quotation.

Are the listed specifications final?

Specifications and configurations may vary by market and application. Contact us for the confirmed configuration that will be stated in the quotation and technical sheet.

Can spare parts be supplied with the order?

A recommended parts package can be discussed after the exact engine, transmission, axle and equipment configuration is fixed. This avoids supplying parts for a different variant.

How can this product be shipped?

The shipping review may include container, flat-rack, breakbulk or RoRo depending on dimensions, dismantling options, route and port. The suitable method is confirmed with the final unit.

Related products

Compare similar sourcing options

Get price & specification

Request a confirmed SYG5283THB 380C-8 offer

Include destination, quantity, work cycle, preferred options and target delivery timing. The inquiry already contains this product and page URL.

No price or specification is assumed from this form. We will confirm the available market configuration before quoting.
